Numerical companion to the entry machine learning pipeline (ML pipeline): it recomputes what the entry states and prints one line per check
Shows why a stage of an ML pipeline that has its own parameters must be fitted on the training set only. A hand-designed feature extraction stage (keeping the features that agree best with the label) fitted on all available data leaks information from the validation set into the learned hypothesis, so that the validation error underestimates the risk; the same stage fitted on the training set only gives a validation error that matches the risk. Self-contained (numpy and matplotlib only), fixed seed.
Run it without installing anything:uv run https://dictionaryofml.org/terms/mlpipeline.py
uv downloads this script and the pinned NumPy and Matplotlib it needs, then runs it; the script fetches any input file it uses. To keep the output files, download mlpipeline.py into a folder and run uv run mlpipeline.py there. With NumPy and Matplotlib already installed, python3 mlpipeline.py, from any directory — it writes its output files into the current directory. Fixed seeds, so the printed numbers reproduce exactly. Download mlpipeline.py · Notebook · Open in Colab
One cell per block of the script: the code, and what that code printed when it last ran here
"""
mlpipeline.py — numerical companion to the glossary entry 'ML pipeline'.
Purpose
-------
Shows why a stage of an ML pipeline that has its own parameters must be
fitted on the training set only. A hand-designed feature extraction
stage (keeping the features that agree best with the label) fitted on
all available data leaks information from the validation set into the
learned hypothesis, so that the validation error underestimates the
risk; the same stage fitted on the training set only gives a validation
error that matches the risk. Self-contained (numpy and matplotlib
only), fixed seed.
Setup
-----
Raw data: 500 features per data point, all drawn independently of the
label, so that no hypothesis can do better than the risk 1.0 (the
label's variance). Training set of 100 data points, validation set of
100, and a test set of 10000 data points on which the risk of a learned
hypothesis is estimated. Pipeline: feature extraction (keep the k
features whose agreement with the label is largest), then a linear
model fitted on the training set, then prediction. The feature
extraction stage is fitted either on training and validation set
together (leaked) or on the training set only (proper), for
k = 1, 2, 5, 10, 20; every number is an average over 20 random draws
of the data.
Blocks
------
[B-leaked] Feature extraction fitted on all 200 labelled data points:
the validation error of the pipeline drops below 0.9 for
k = 20, while the risk of the same hypothesis exceeds 1.4.
[B-proper] Feature extraction fitted on the training set only: the
validation error stays within 0.1 of the risk for every k.
[B-compare] The amount by which the leaked validation error
underestimates the risk grows with k and exceeds 0.3 for
k >= 10; the proper pipeline's never exceeds 0.1.
Outputs
-------
mlpipeline_errors.csv : per k, the validation error and the risk of the
leaked pipeline and of the proper pipeline.
mlpipeline.png : matplotlib preview of that figure (checking only).
"""
import numpy as np
import matplotlib
matplotlib.use("Agg")
import matplotlib.pyplot as plt
from pathlib import Path
OUT_DIR = Path(__file__).parent
report = []
def check(name, ok):
report.append((name, bool(ok)))
print(f" [{'ok' if ok else 'FAIL'}] {name}")
rng = np.random.default_rng(0)
D, M_TRAIN, M_VAL, M_TEST, REPS = 500, 100, 100, 10000, 20
KS = [1, 2, 5, 10, 20]
tr = slice(0, M_TRAIN); va = slice(M_TRAIN, M_TRAIN + M_VAL)
te = slice(M_TRAIN + M_VAL, None)
def fit_extraction(Xf, yf, k):
"""Stage 1: keep the k features agreeing best with the label."""
score = np.abs((Xf - Xf.mean(0)).T @ (yf - yf.mean())) / len(yf)
return np.argsort(score)[::-1][:k]
def fit_model(Xf, yf):
"""Stage 2: linear model with intercept, least squares."""
A = np.c_[Xf, np.ones(len(yf))]
return np.linalg.lstsq(A, yf, rcond=None)[0]
def predict(w, Xf):
return np.c_[Xf, np.ones(len(Xf))] @ w
def run(X, y, k, extraction_rows):
cols = fit_extraction(X[extraction_rows], y[extraction_rows], k)
w = fit_model(X[tr][:, cols], y[tr]) # model: training set only
valerr = float(np.mean((y[va] - predict(w, X[va][:, cols])) ** 2))
risk = float(np.mean((y[te] - predict(w, X[te][:, cols])) ** 2))
return valerr, risk
all_rows = np.arange(M_TRAIN + M_VAL)
train_rows = np.arange(M_TRAIN)
acc = np.zeros((len(KS), 4)) # vl, rl, vp, rp
for _ in range(REPS):
X = rng.standard_normal((M_TRAIN + M_VAL + M_TEST, D))
y = rng.standard_normal(M_TRAIN + M_VAL + M_TEST) # independent of X
for i, k in enumerate(KS):
acc[i, 0:2] += run(X, y, k, all_rows)
acc[i, 2:4] += run(X, y, k, train_rows)
acc /= REPS
leaked = [(acc[i, 0], acc[i, 1]) for i in range(len(KS))]
proper = [(acc[i, 2], acc[i, 3]) for i in range(len(KS))]
Feature extraction fitted on all 200 labelled data points: the validation error of the pipeline drops below 0.9 for k = 20, while the risk of the same hypothesis exceeds 1.4.
v20, r20 = leaked[KS.index(20)]
check(f"[B-leaked] extraction fitted on all 200 points, k=20: validation "
f"error {v20:.2f}, risk {r20:.2f}", v20 < 0.9 and r20 > 1.4)
[ok] [B-leaked] extraction fitted on all 200 points, k=20: validation error 0.85, risk 1.42
Feature extraction fitted on the training set only: the validation error stays within 0.1 of the risk for every k.
gap_proper = max(abs(v - r) for v, r in proper)
check(f"[B-proper] extraction fitted on the training set only: validation "
f"error within {gap_proper:.2f} of the risk for every k",
gap_proper < 0.1)
[ok] [B-proper] extraction fitted on the training set only: validation error within 0.02 of the risk for every k
The amount by which the leaked validation error underestimates the risk grows with k and exceeds 0.3 for k >= 10; the proper pipeline's never exceeds 0.1.
under_leaked = [r - v for v, r in leaked]
under_proper = [r - v for v, r in proper]
check("[B-compare] risk minus validation error per k: leaked "
+ ", ".join(f"{u:.2f}" for u in under_leaked) + "; proper "
+ ", ".join(f"{u:.2f}" for u in under_proper),
all(a < b for a, b in zip(under_leaked, under_leaked[1:]))
and all(u > 0.3 for u, k in zip(under_leaked, KS) if k >= 10)
and all(abs(u) < 0.1 for u in under_proper))
# ---------------------------------------------------------------- CSV
with open(OUT_DIR / "mlpipeline_errors.csv", "w") as fh:
fh.write("k,valerr_leaked,risk_leaked,valerr_proper,risk_proper\n")
for k, (vl, rl), (vp, rp) in zip(KS, leaked, proper):
fh.write(f"{k},{vl:.4f},{rl:.4f},{vp:.4f},{rp:.4f}\n")

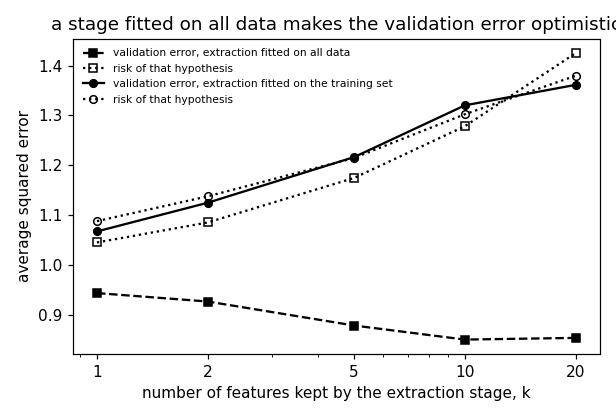

# -------------------------------------------------------------- preview
fig, ax = plt.subplots(figsize=(5.6, 3.8))
ax.plot(KS, [v for v, _ in leaked], "ks--", ms=5, label="validation error, extraction fitted on all data")
ax.plot(KS, [r for _, r in leaked], "ks:", ms=5, mfc="none", label="risk of that hypothesis")
ax.plot(KS, [v for v, _ in proper], "ko-", ms=5, label="validation error, extraction fitted on the training set")
ax.plot(KS, [r for _, r in proper], "ko:", ms=5, mfc="none", label="risk of that hypothesis")
ax.set_xscale("log"); ax.set_xticks(KS); ax.set_xticklabels([str(k) for k in KS])
ax.set_xlabel("number of features kept by the extraction stage, k")
ax.set_ylabel("average squared error")
ax.set_title("a stage fitted on all data makes the validation error optimistic")
ax.legend(frameon=False, fontsize=7)
fig.tight_layout()
fig.savefig(OUT_DIR / "mlpipeline.png", dpi=110)
n_ok = sum(ok for _, ok in report)
print(f"\n{n_ok}/{len(report)} checks pass")
print(f"wrote {OUT_DIR / 'mlpipeline_errors.csv'}, {OUT_DIR / 'mlpipeline.png'}")
if n_ok != len(report):
raise SystemExit(1)
[ok] [B-compare] risk minus validation error per k: leaked 0.10, 0.16, 0.30, 0.43, 0.57; proper 0.02, 0.01, -0.00, -0.02, 0.02 3/3 checks pass wrote /Users/junga1/dictionaryappliedml/pythondemos/mlpipeline_errors.csv, /Users/junga1/dictionaryappliedml/pythondemos/mlpipeline.png
